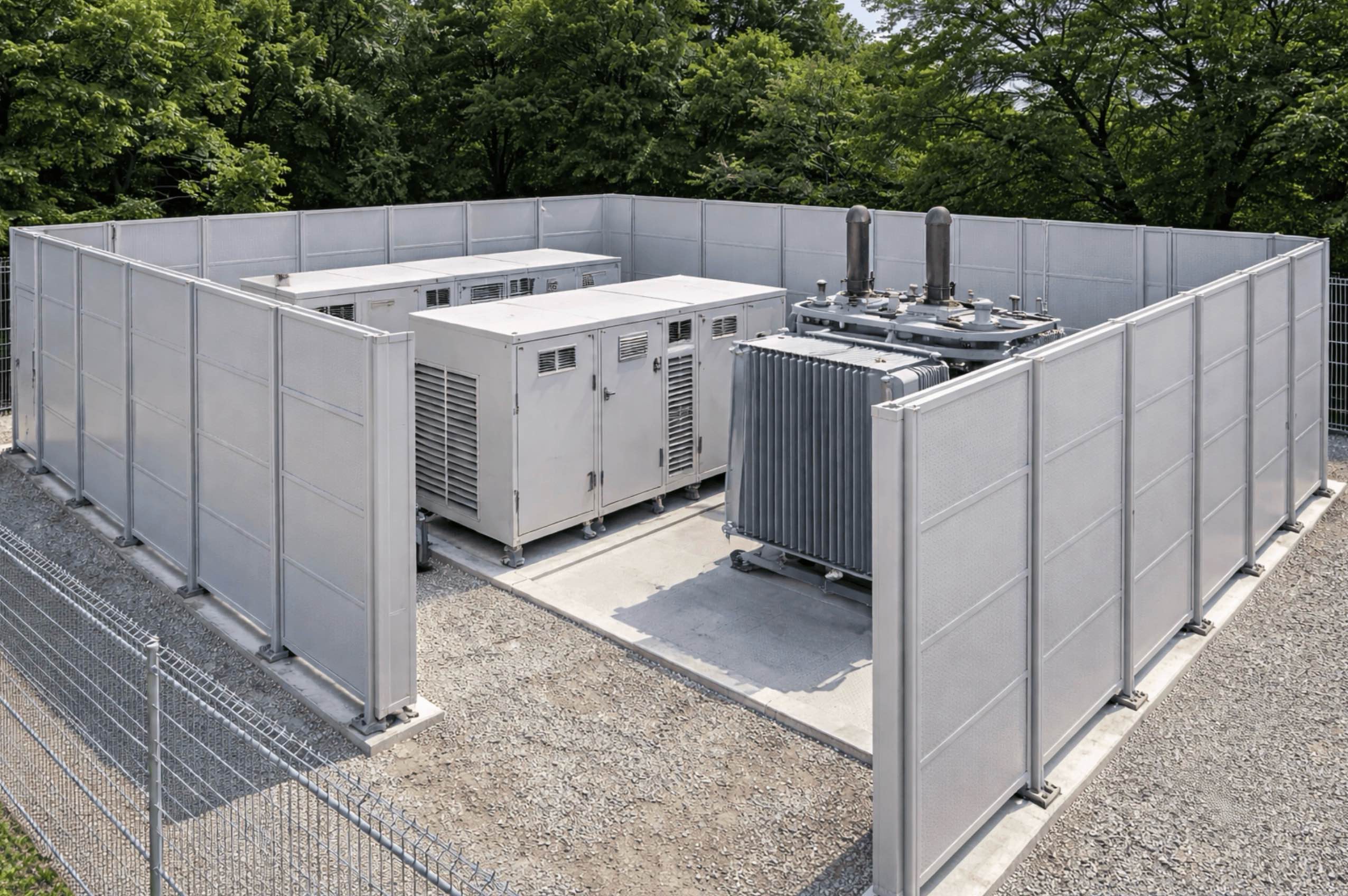

The H-3000 ES/SP acoustic panel system is engineered to deliver reliable noise mitigation for grid-scale battery storage facilities, ensuring consistent performance across a wide range of operating conditions. Its multi-layer composite structure absorbs and attenuates sound energy rather than reflecting it, enabling effective noise reduction even in acoustically sensitive environments.

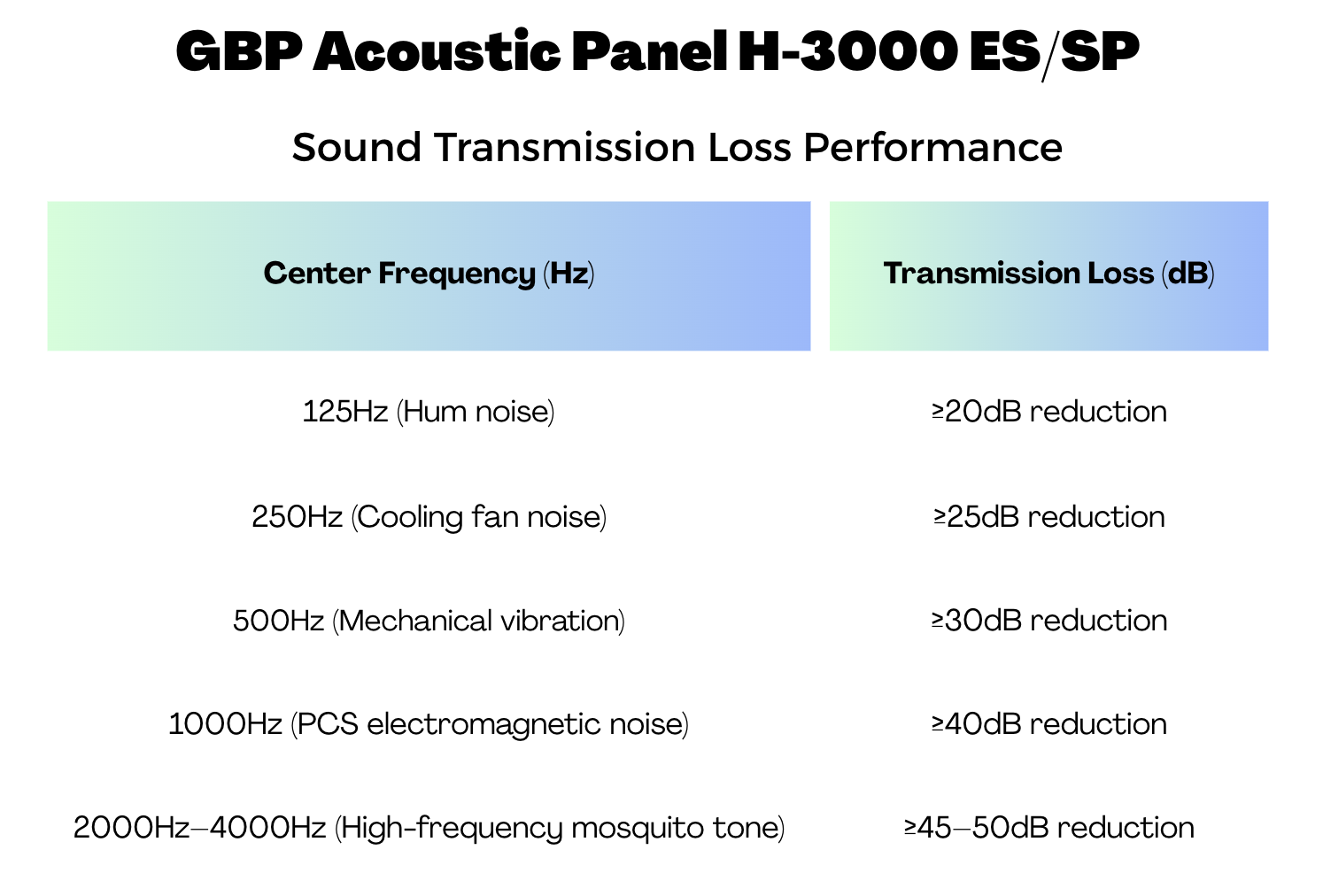

Wide-Band Noise Reduction ≥20 dB

Engineered multi-layer composite panels combine advanced sound-absorbing materials with blocking layers to reduce noise across a wide frequency range. This ensures reliable compliance with environmental regulations, minimizes the impact on surrounding communities, and allows projects to be sited closer to residential areas without compromising performance.

Customizable Height Design (2–4 m)

Panel heights can be adjusted between 2 and 4 meters to match specific equipment layouts and site conditions. This flexibility allows optimized acoustic shielding for a variety of installations, enhancing noise mitigation effectiveness without the need for costly redesign or additional materials.

Durable Outdoor-Grade Materials

Constructed from corrosion-resistant steel and UV-stable aluminum, with reinforced framing and protective coatings, the panels are built to withstand harsh weather and long-term exposure. This ensures reliable performance over time, reduces maintenance frequency, and lowers total lifecycle costs for operators.

1. Noise Analysis
Detailed assessment of sound sources, frequencies, distances, and surroundings to quantify required reduction levels.

2. Optimized Design
Integration of:

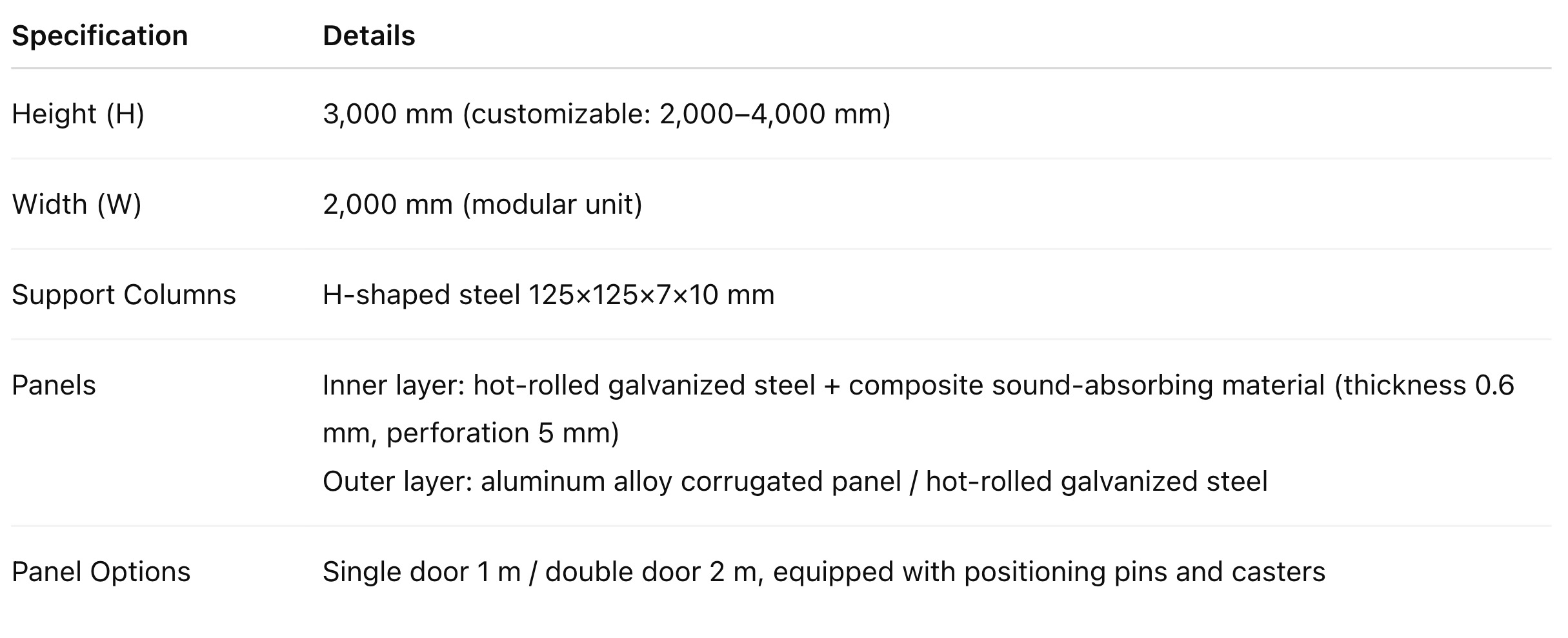

Custom panel heights (standard 3000 mm, adjustable 2000–4000 mm)
Precise barrier placement to block noise from critical sources
Equipment layout optimization considering directional noise (e.g., fan exhaust, PCS fronts)

3. Integrated Installation Service
Unified management from design through construction ensures reliable performance and shorter schedules.

4. Post-Operation Monitoring
Periodic measurements verify compliance and allow rapid corrective action if needed
